CPAP Battery Pack Power bank DC Output 12V 19V 24V 3.75A 2.5A Powerbank For Resmed S9 Airsense 10 Aircurve 10 11 S10 S11 Machine

Rs. 19,100.80 INR

~~Rs. 76,403.21 INR~~ Rs. 19,100.80 INR

Sale Sold out

Taxes included.

Color With S10 cable With DS cable With S9 cable With S11 cable

Ships From CN

SPECIFICATIONS

Application: Laptop

Brand Name: PWEITE

Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee,NONE

DC Output Power: 3.3V-24V

High-concerned chemical: None

Model Number: DC20

Nominal Capacity: 20000mah

Origin: Mainland China

Product Name: CPAP power bank

Rated Voltage: Others

Size: 150*90*24mm

Type: Li-Ion

Type C Output: PD 100W

Voltage: 5-24V

Weight: 0.7kg

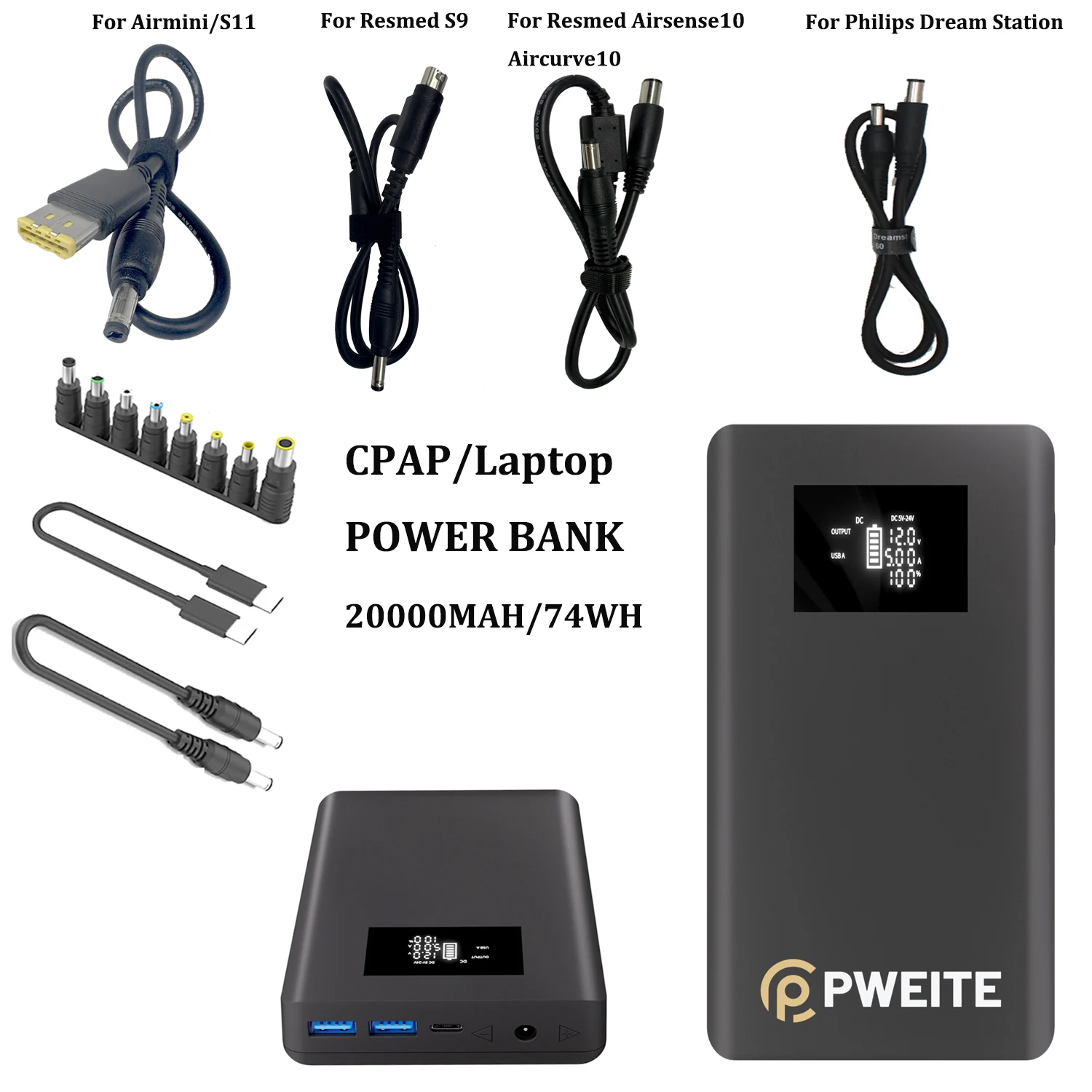

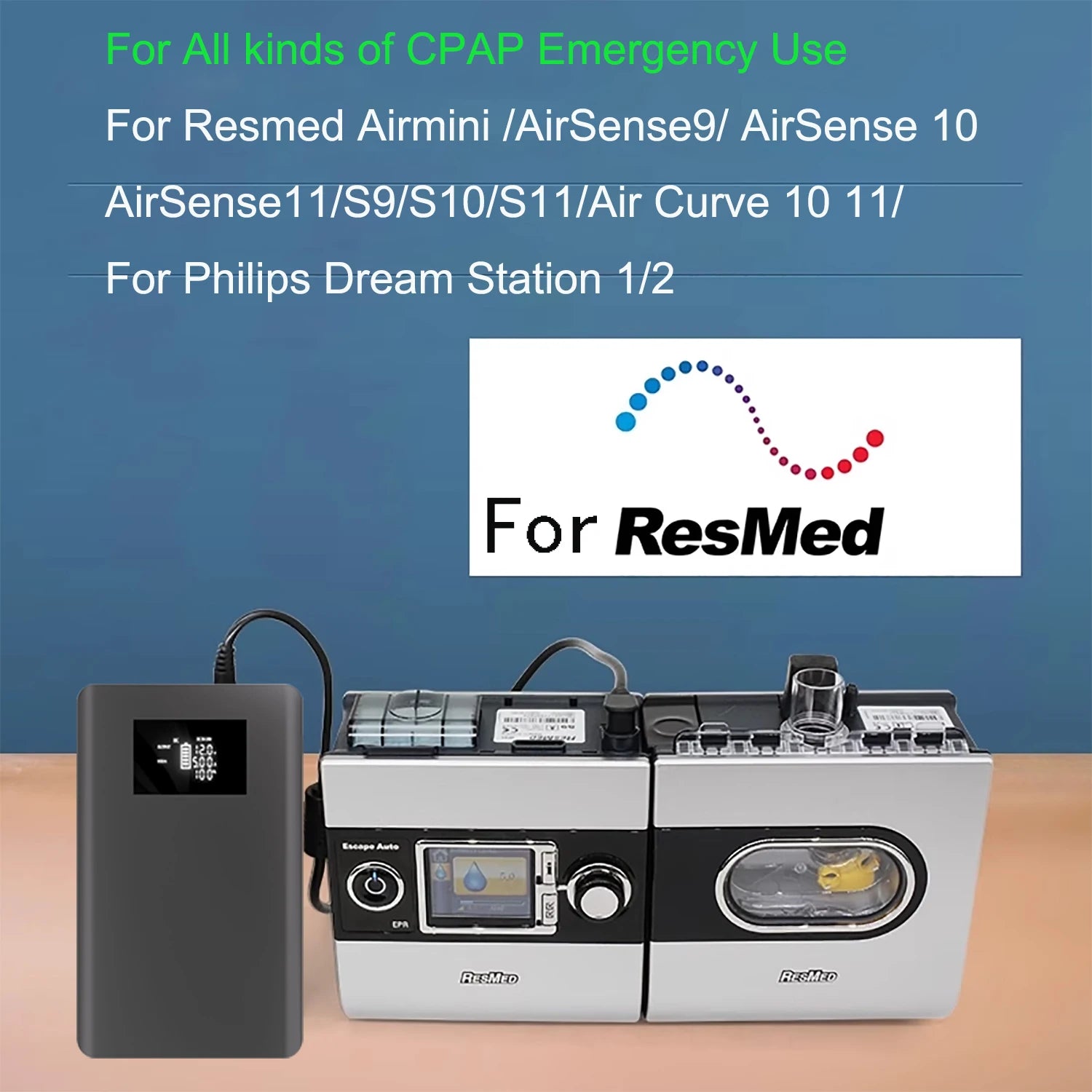

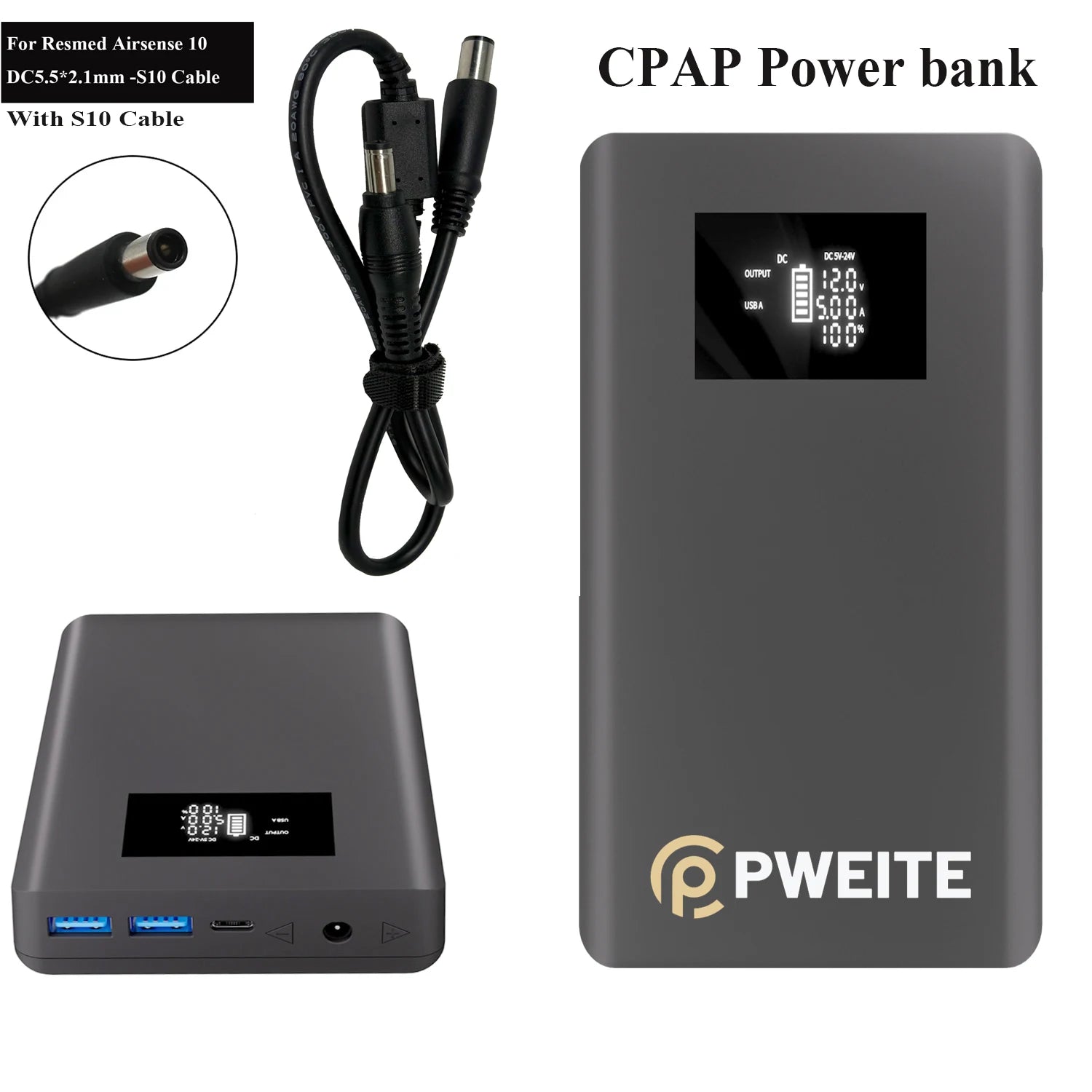

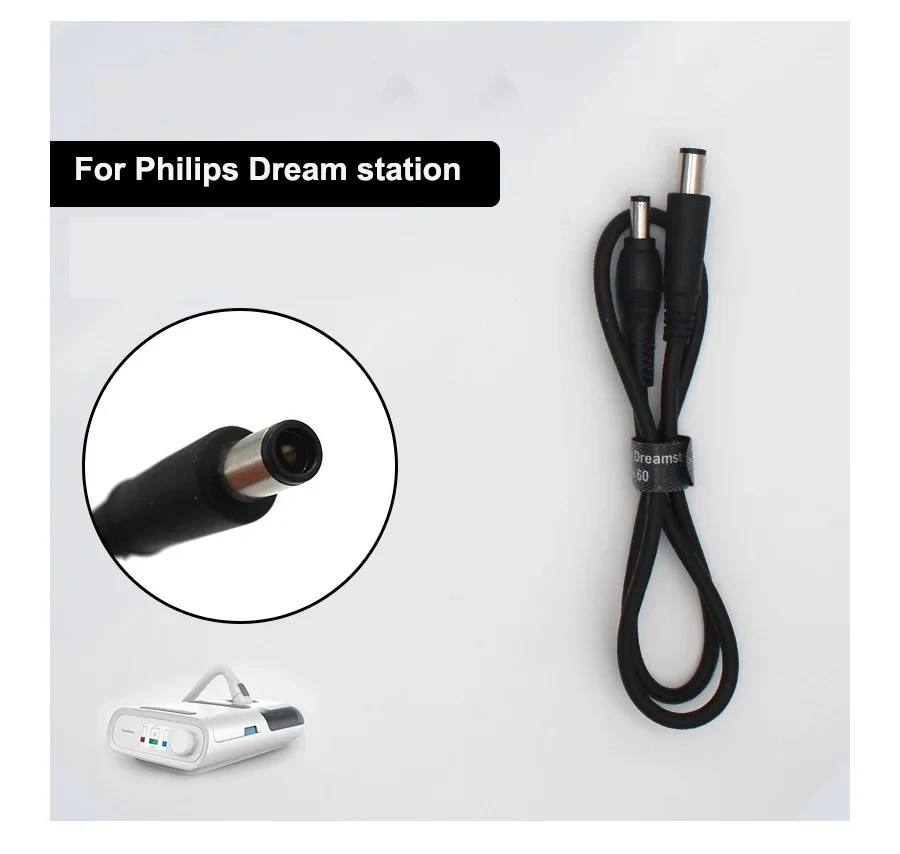

Notice : This Power bank has 4 different CPAP DC cable optional , For Resmed Airsense 10/Aircurve 10/Resmed S9/（Airsense 11/Aircurve11/Airmini /For Philips Dream station CPAP Machine，Pls Choose the one you like !!!

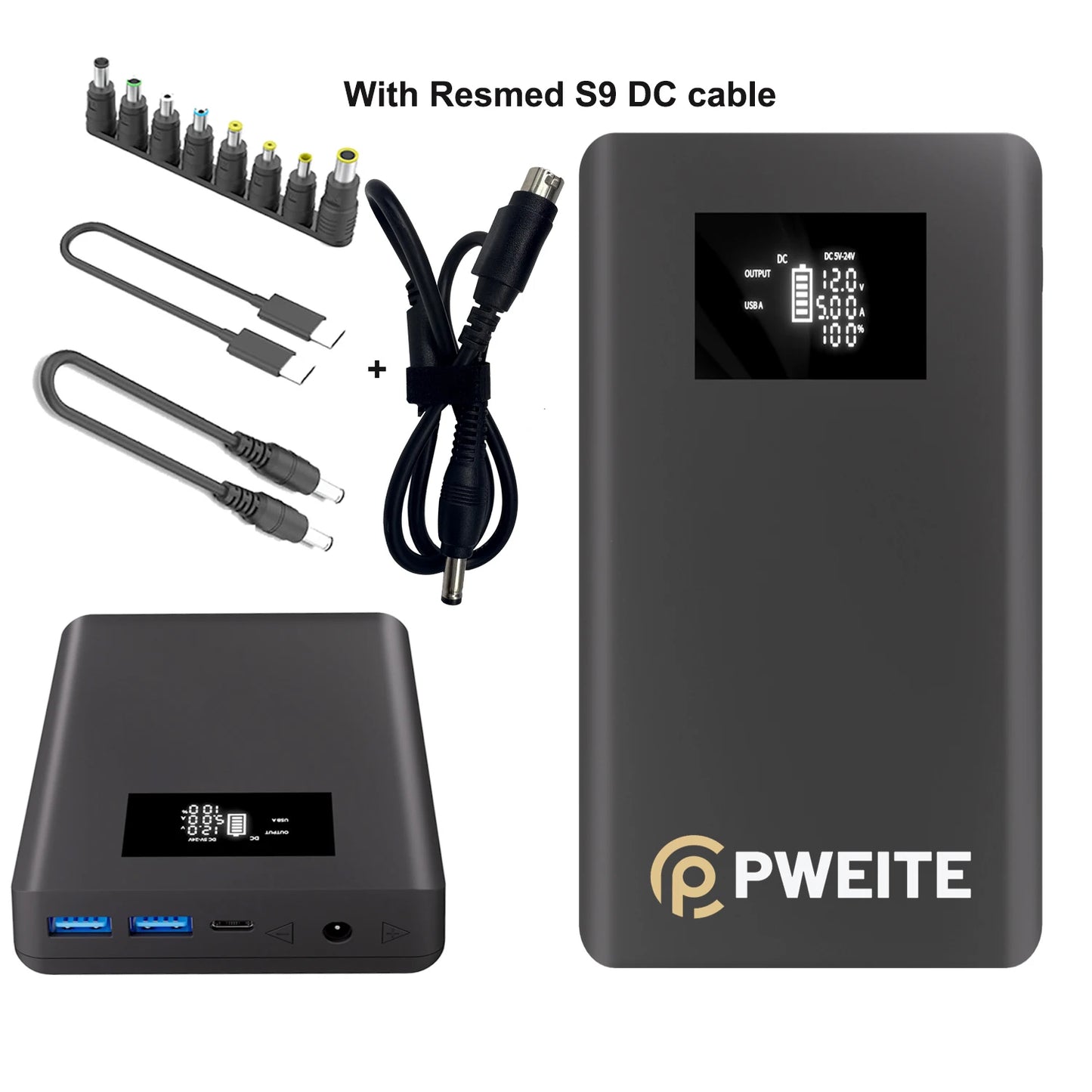

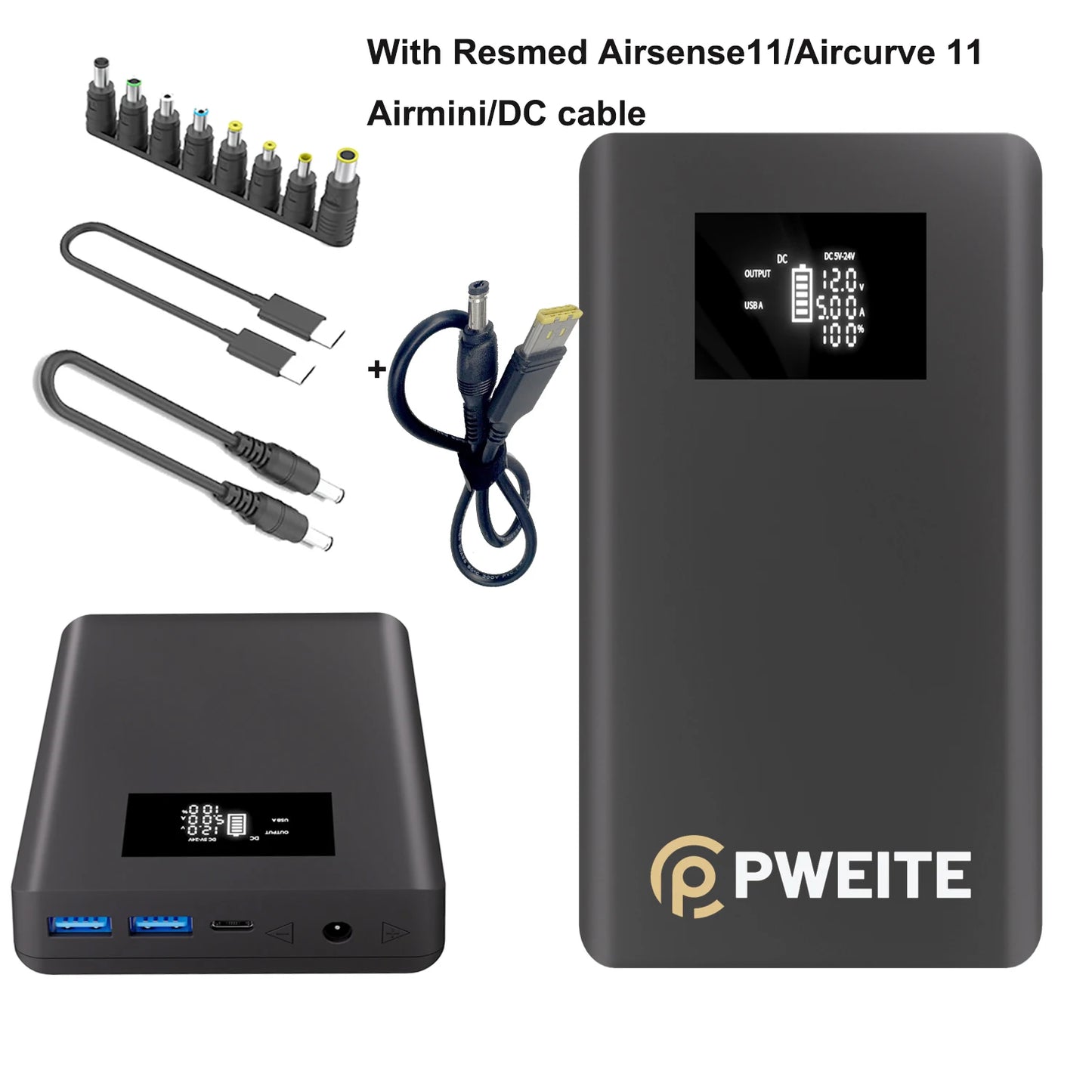

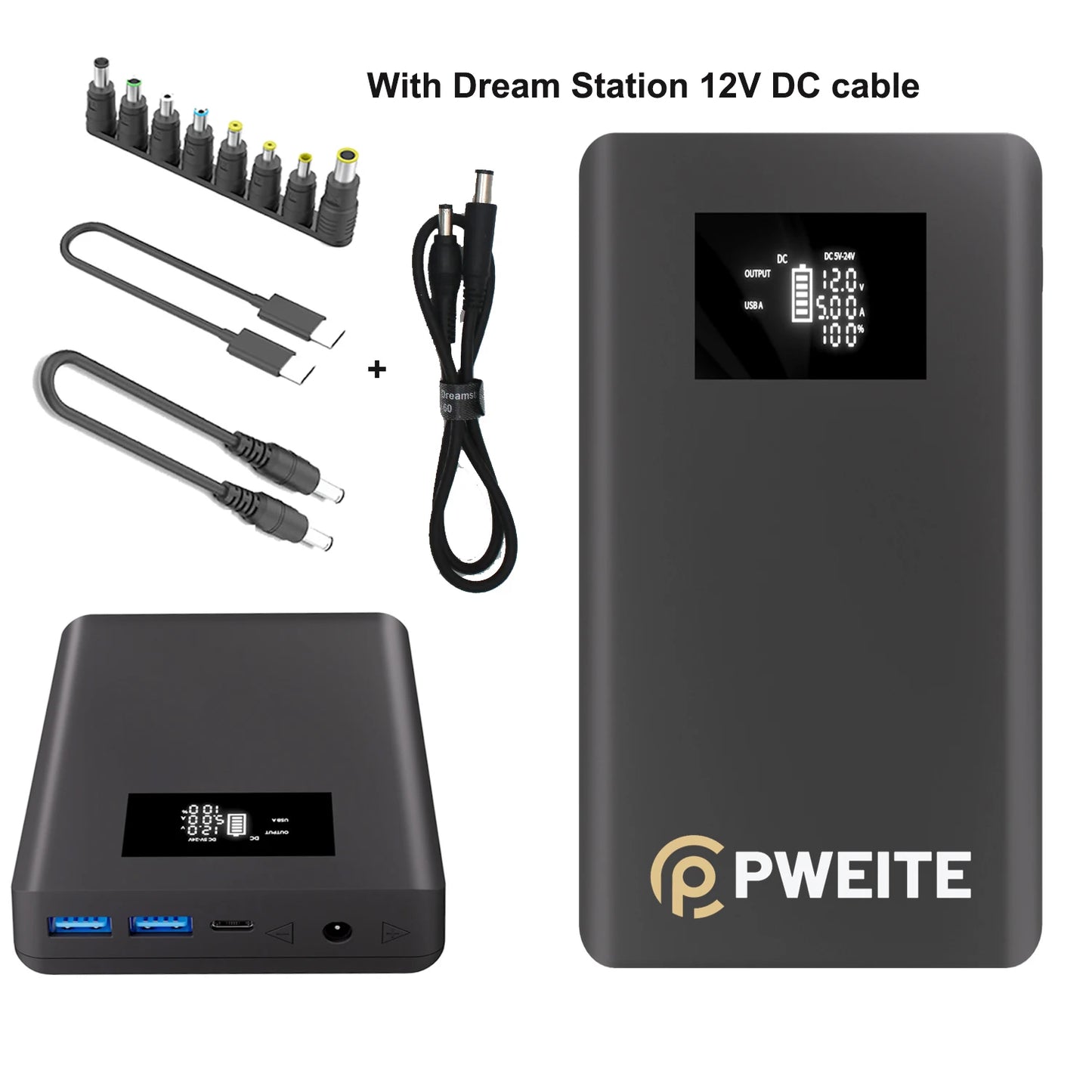

Standard packing accessories :

1*Power bank

1*DC CPAP cable

1*DC-DC 5.5*2.1mm cable

1*Type C PD100W cable

8pcs dc connectors

1*user manuel

Standard packing dc connector is 8pcs

More dc connector size pls check below link :

Specs :

Model No: DC20

Capacity: 20000mah 74WH

Product Size : 150*90*24mm

Battery Type : 21700 lithium batteries

Support PPS 3.3V-11V(5A max)

Input:

DC input : 5V-24V/5A (120W Max.)

Type C Input:5V/3A, 9V/3A,12V/3A,15V/3A,20V/5A(PD100W)

Output:

Type c : 5V/3A, 9V/3A,12V/3A,15V/3A,20V/5A(PD100W)

2*USB-A:5V/3A, 9V/2A, 12V/1.5A(QC18W)

DC:3.3V-24V/5A (120W Max.), each 0.1V voltage for Selecting.

Descriptions:

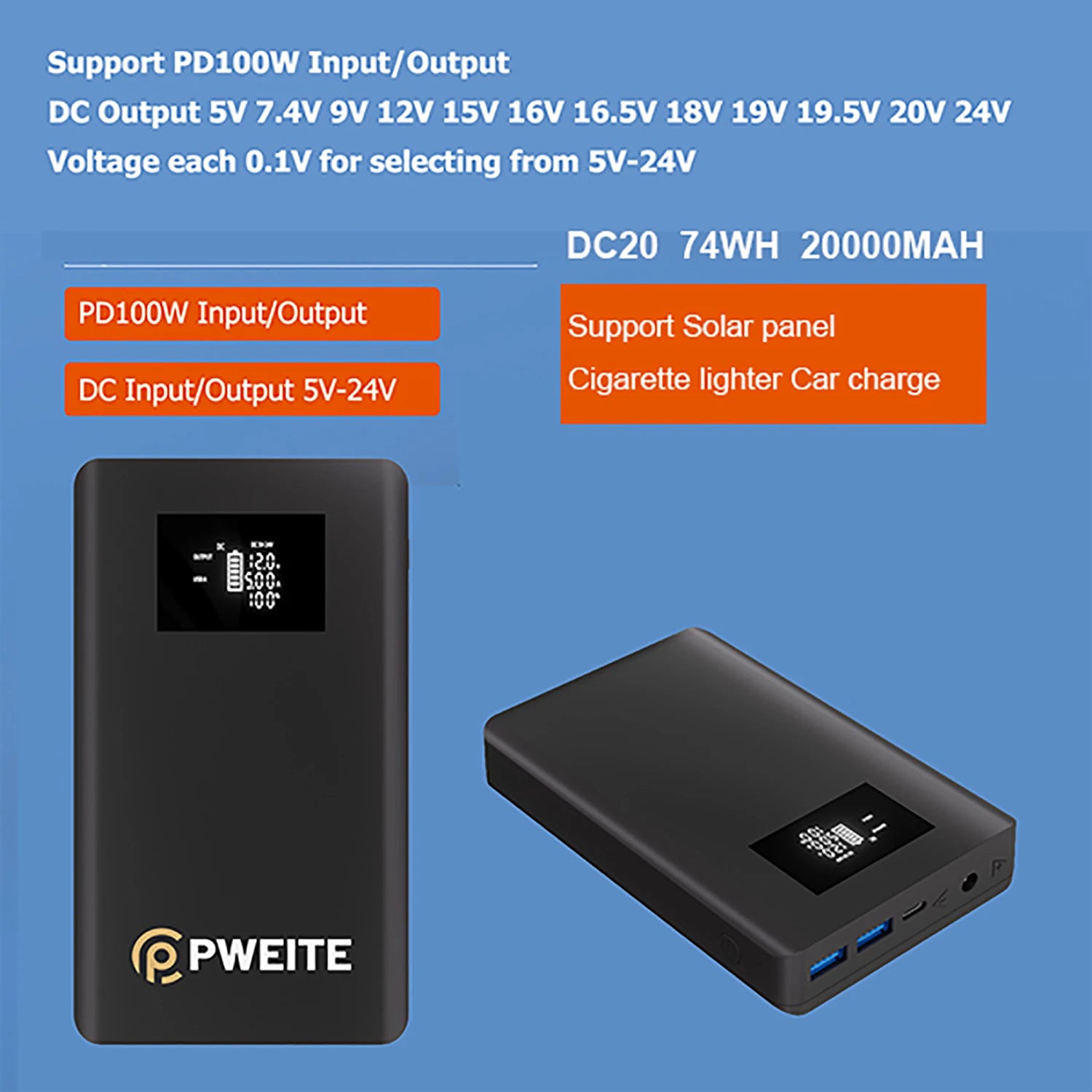

DC  Port can support input and output , output selecting voltage is 3.3v-24V  ; 5V 9V 12V 13V 14V 15V 16V 16.5V 18V 19V 19.5V 20V 21V 24V ( each 0.1V voltage can selecting , such as 5V 5.1V 5.2V  -24V  ) .  which can support CPAP Machine Resmed air mini & BMC M1 , DC laptops  , wifi router , Modem , LED light , LED strip and other all kinds of 5V-24V  devices .

100W PD power bank for laptop】The Type-C port of the battery bank reaches up to 100W with power delivery 3.0 technology for super-fast charging. Supports most usb c powered laptops such as Macbook, surface book 2, thinkpad e480, lenovo yoga, hp, dell xps 13,15, etc. Fully recharge Macbook Pro 13’’ within 2 hours.

The portable charger power bank has certified by CE, RoHS, FCC, and protects devices from overcharging, overheating, and short-circuiting. Fully compatible with most USB C and USB A powered devices, not only MacBook, laptop, iPad, Nintendo Switch, GoPro but iPhone, Android devices. The compact design slips into a backpack and you can also take it on the plane.

Application

This Is a High Capacity Multifunctional Battery Pack Which Can charge all kinds of DC5V-24V, USB And Type C 5V-20V devices. such as DC Laptops,Type C Laptops ,Dashcam，CPAP，LCD Monitor,CCTV Camera,Heating Jacket,Air conditioning clothing, smart mobile phone, tablet PC, MP3/MP4, digital camera, Wifi Router,Projector,LED light ,LED strip etc.

Product Features

1. WithType C PD Input /Output , type c super fast charge input and output port

2. DC Input/Output 5V-24V

(DC output support 0.1V each voltage for selecting ) which can support Type c laptop , dc laptop ,wifirouter , projector , scanner , LED light , LED strip , Monitor , camera , tablet , phone and other all kinds of5v-24v devicescharging .Such as 5V 6v 7v 7.4v 8v 8.4v 9v 10v 11v 12v 13v 14v 15v 16v 16.5v 17v 18v 19v 19.5v 20v 21v 22v 23v 24v5A Max

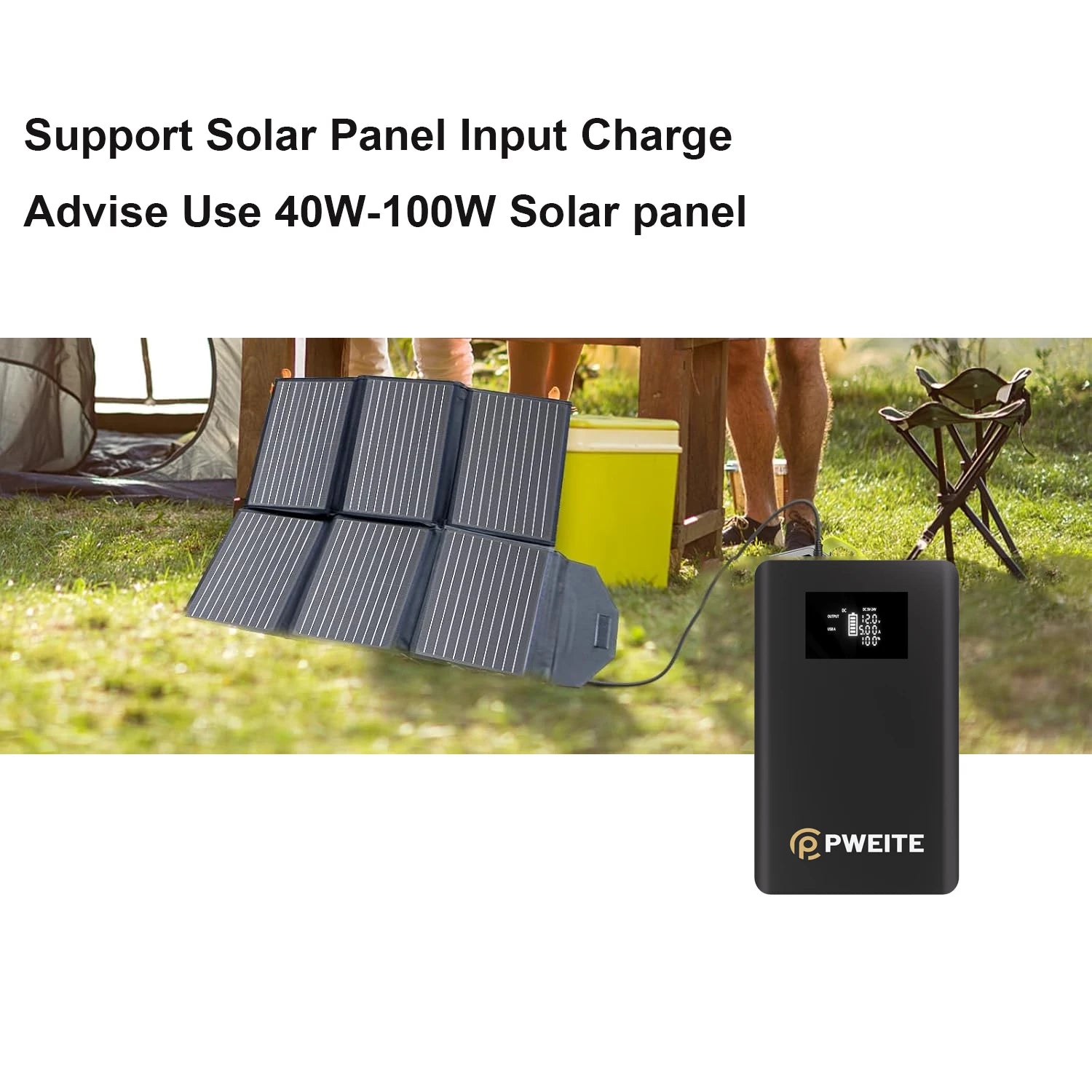

3. SupportDC Input Solar panel input charge

4.SupportPass Through always on charging function

5. With good safety protections ( over current protection ; over voltage protection ; short circuit protection ; over temperatureprotection etc )

6.WithLCD Display , BMS Capacity management system

7.Use AA class brand cells , 100% do in real capacity

8. Can take by Plane

Model No.	DC20
Capacity	20000mah 74Wh
Size	150mm90mm24mm
N.W	About 400g
Cell type	lithium battery ICR21700
Input	*1DC:5V-24V 96W Max(Support Solar Panel input charge) 1USB C:*5V/3A 9V/3A 12V/3A 15V/3A 20V/5 PD100W Max
Output	*1DC: 5V-24V 96W Max 5V-12V5A Max ;13V-19V 5A Max ; 20V-24V 4A Max ( each 0.1V voltage selecting ) 1USB-C: 5V/3A 9V/3A 12V/3A 15V/3A 20V/5 PD100W Max* *2QC3.0**USB-A:5V 3A ;9V 2A ;12V 2A
Support Charge and discharge	Yes
Safetyprotection	Overvoltageprotection；over currentprotection； under-voltage protection；over temperature protection； short circuit protection
Conversion efficiency	5V/2A≈93% 9V/2A≈95% 12V/2A≈97%
Full Charging time(input)	Type C input portcharging： 1.Use Type c PD 65w charger,About 1hours full charged; 2.Use PD100W adapter charge about 30-40 minutes full charged; 3.Charging by DC input port (Use 19V 2A adapter ) About 2hours full charged 4.Use 60W Solar panel charge, about 1 hour full charged
Cycle times	≥1000times
Charge temperature range	0o℃~+50℃
Discharge temperature range	-10o℃~+65℃
Storage temperature range	0o℃~45℃,within 30 days
Long-termStorage temperature range	0℃~40℃,within 180 days
Storage humidity	45% ~85%RH
Long-term storage time	Advise charging it if it is not used within 90 days

Product specification

With 4 ports :

1*Type c port (input/Output 100W max)

2 *USB output port (22.5W max)

1*DC input/Output5V-24V (96W max)

Key function instruction

①Battery pack Side power button

This button can voltage selecting , also can light up the lcd display

②Voltage selecting :

The DC port Voltage selecting :

Need long press the Power button , when the display show "DC5V-24V"letters and flashing, then click "+/-" button select the Voltage

Q：How to charge this product?

Have 4 different charging Ways

1. Use type c adapter charge
2.Use ac dc adapter charge
3.Use solar panel charge

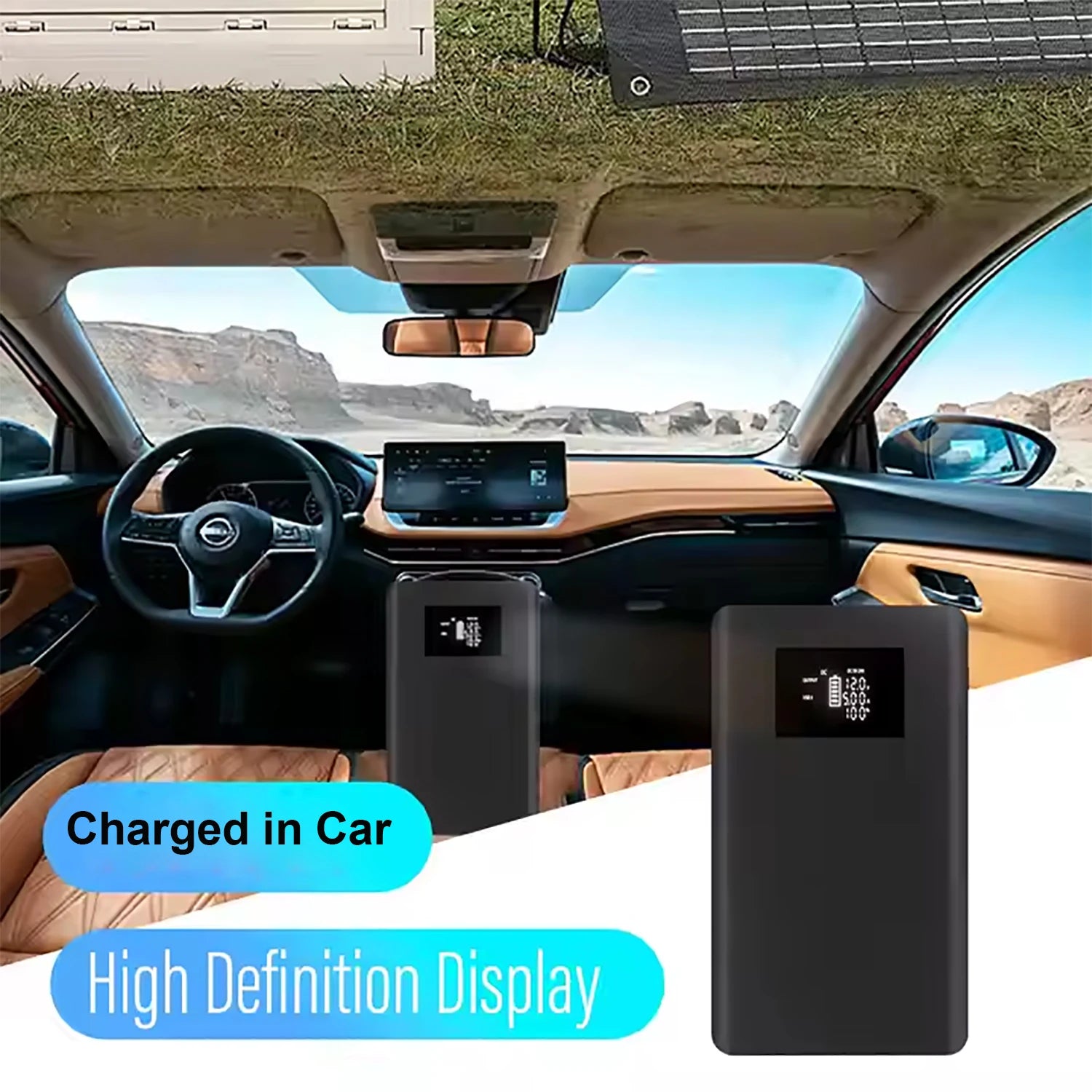

4.Can charge in the car by the car cigarette lighter port

Q：How to Discharge this product?

1. 2*USB-A ports :Use the Correct Connecting cable ,connect with the USB-A port .

2. DC Output port: , Need long press the Power button , when the display show "DC5V-24V"letters and flashing, then click "+/-" button select the Voltage,Selecting the voltage which can match with your device .

3. Type c Output port: Use type c to type c cable connecting with your type c device , will automatic identify your device working voltage and work for your device .
