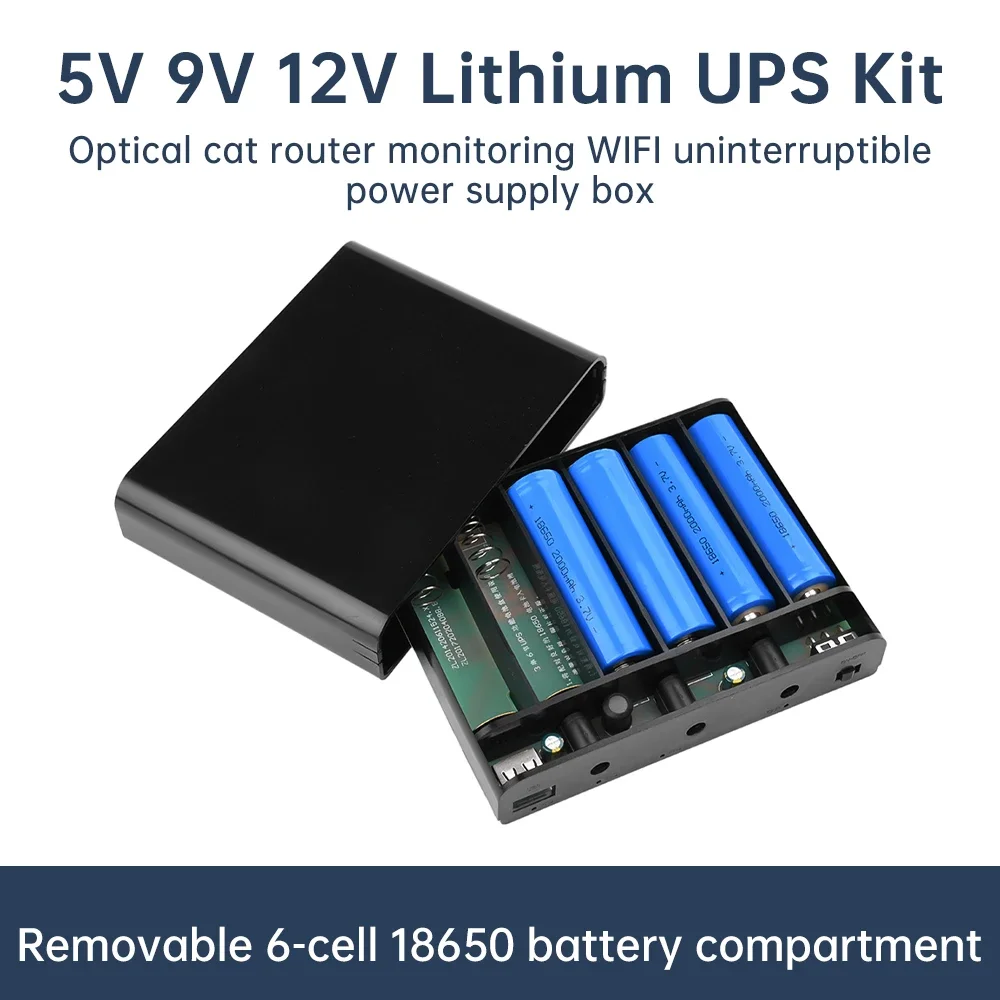

Features:

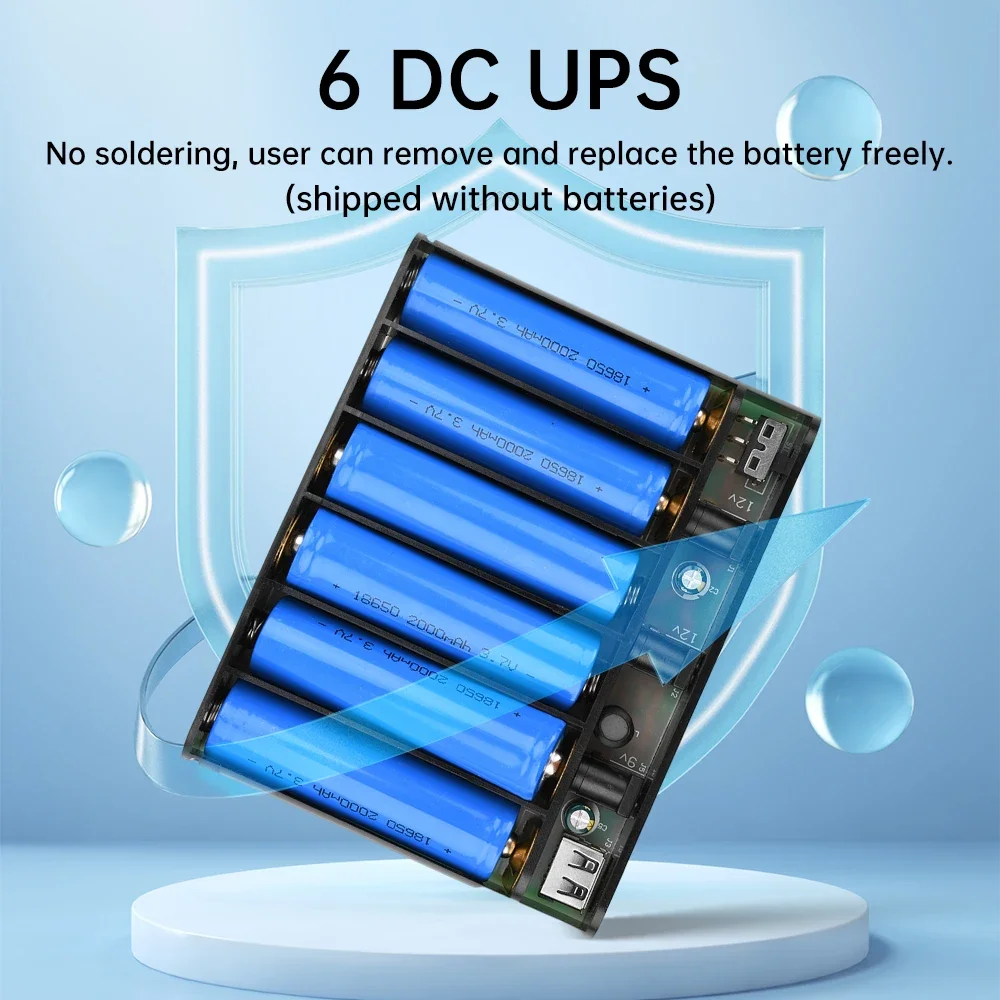

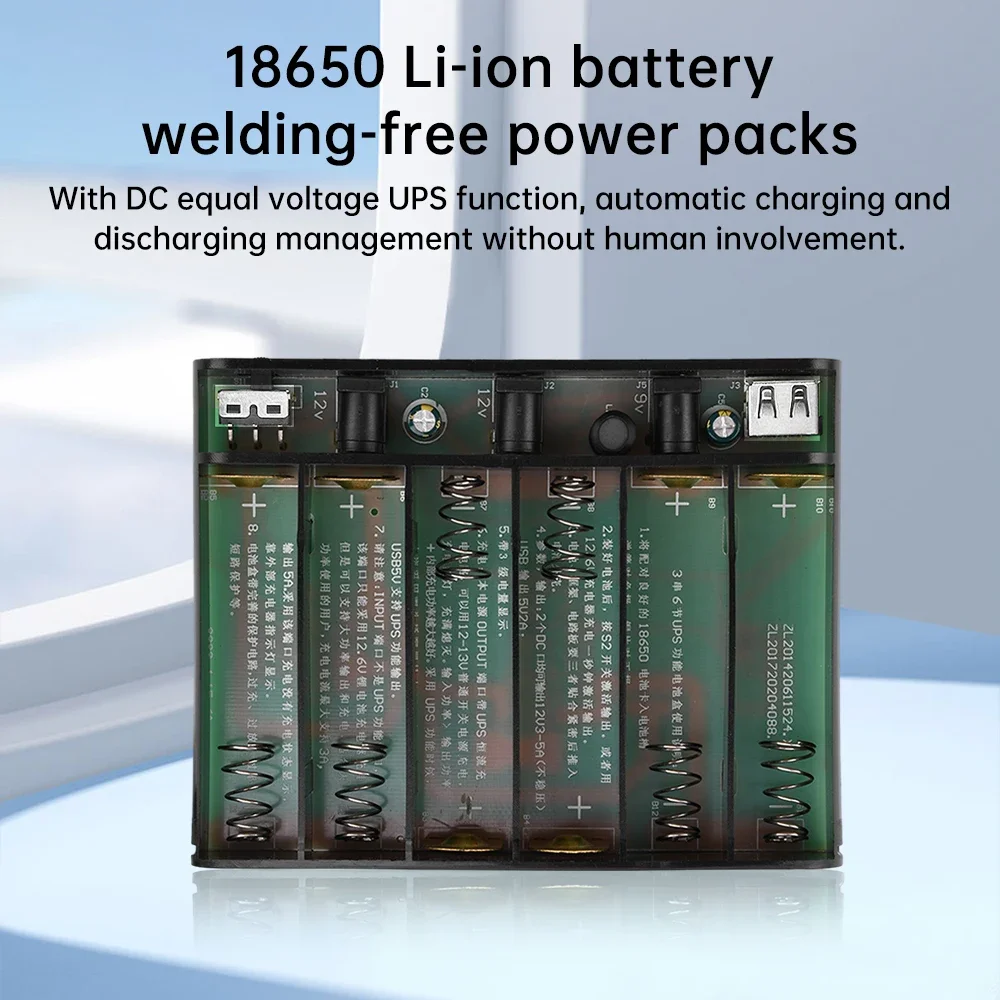

1. The product is free of welding, the user can freely disassemble and replace the battery
2. With DC isovoltage UPS function, realize automatic charge and discharge management without manual participation.

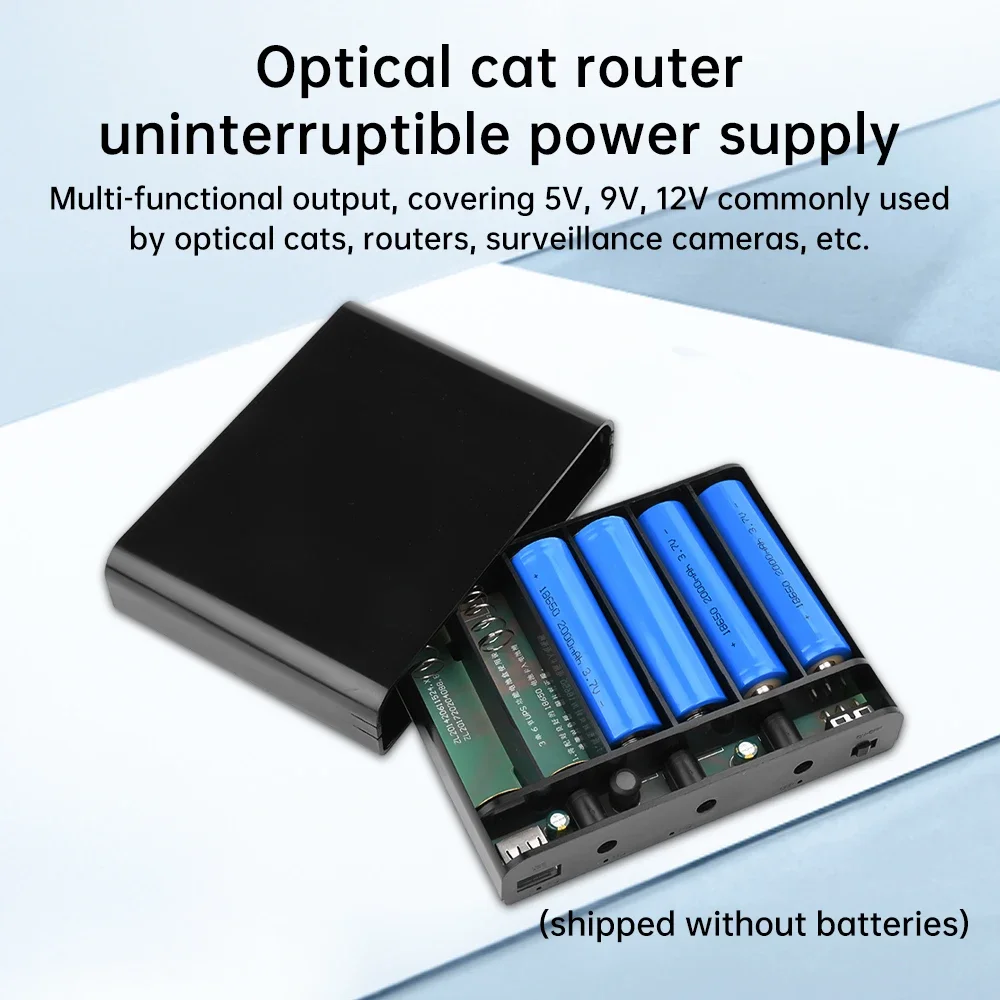

3. Multi-functional output, covering optical cat, router, surveillance cameras and other commonly used 5V, 9V, 12V three voltages
4. Strict quality control to ensure long-term stable operation and prolong service life.

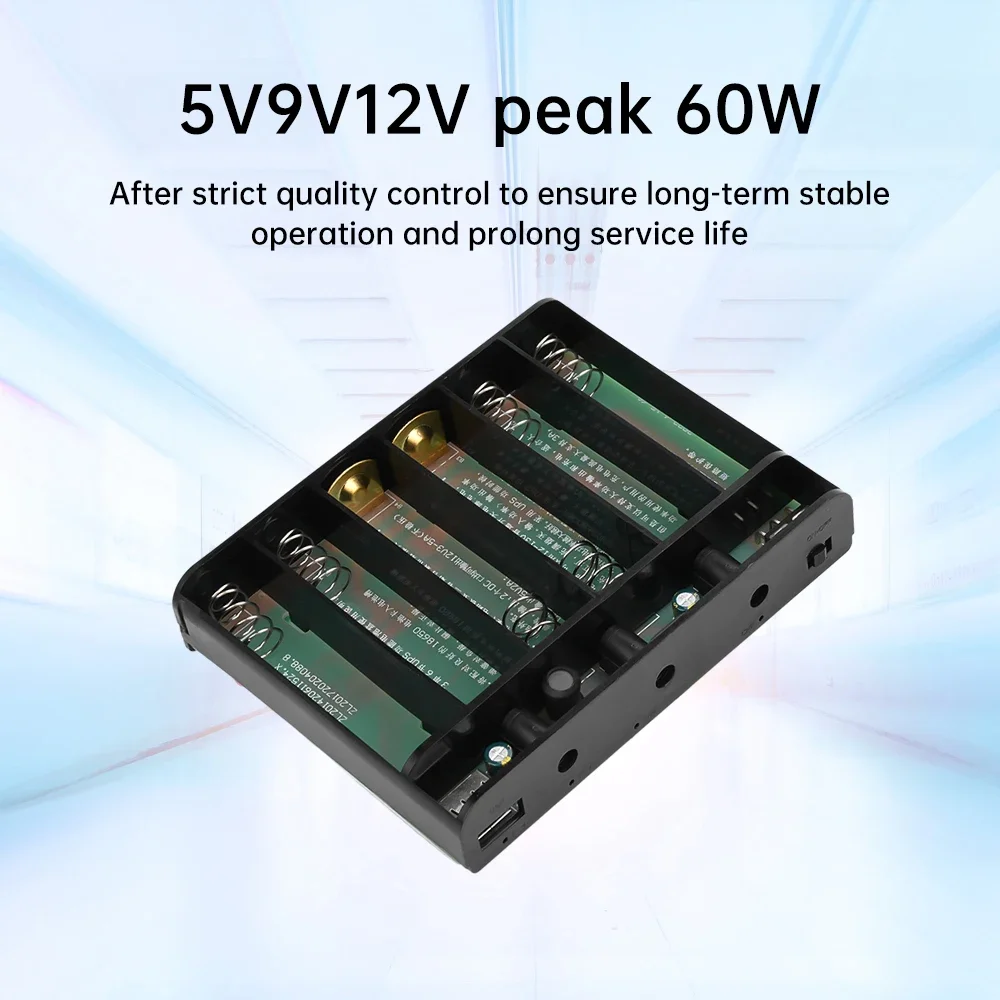

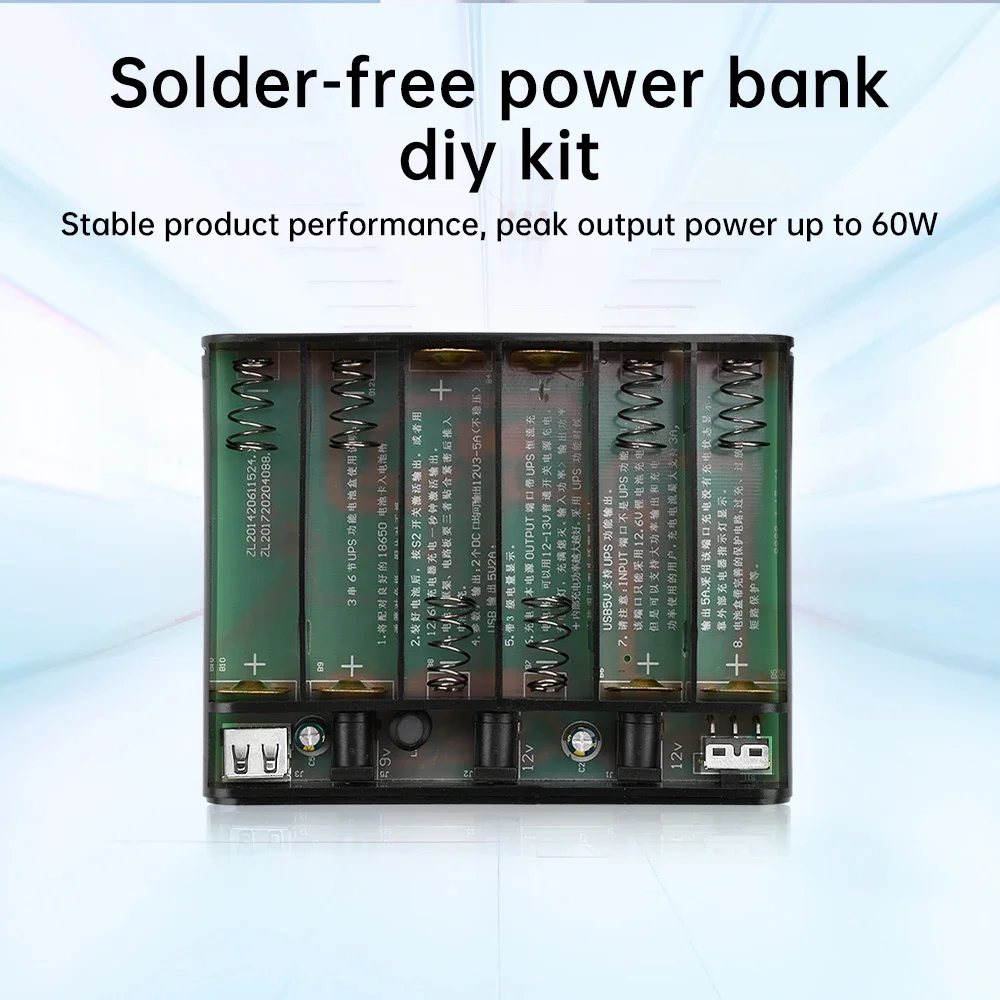

5. Stable product performance, peak output power up to 60W

Parameter:

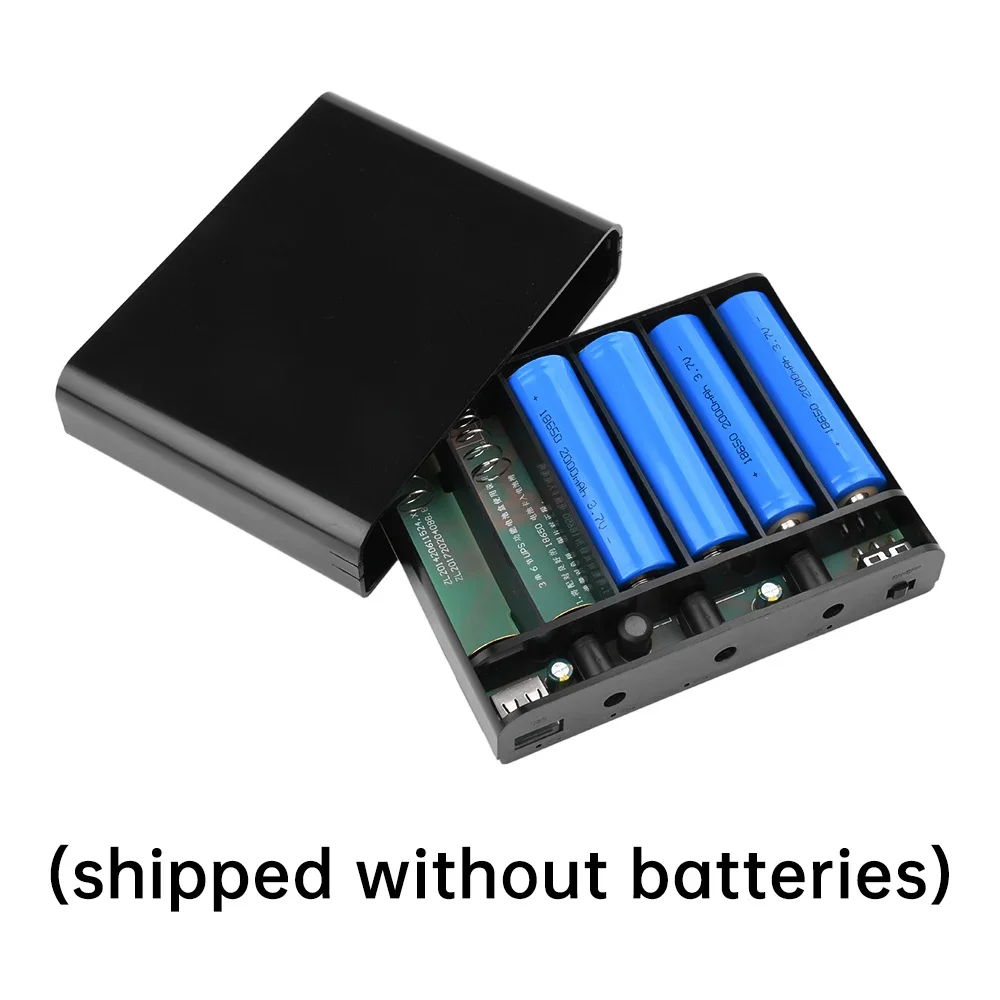

Installable battery capacity: 6 * 3.7V * 3400mah = 74 watt-hours (battery users to provide)
Rated output power: 12V5A = 60W; the actual output power from the battery itself output power

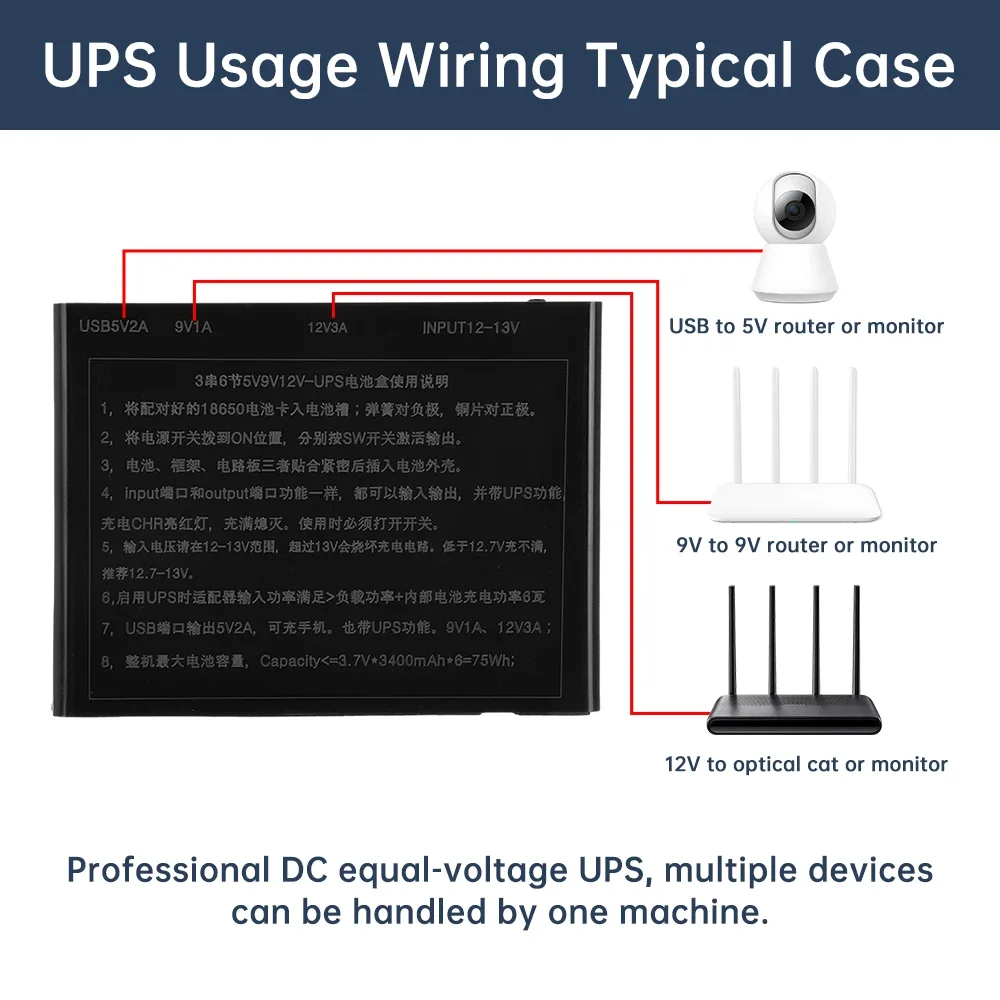

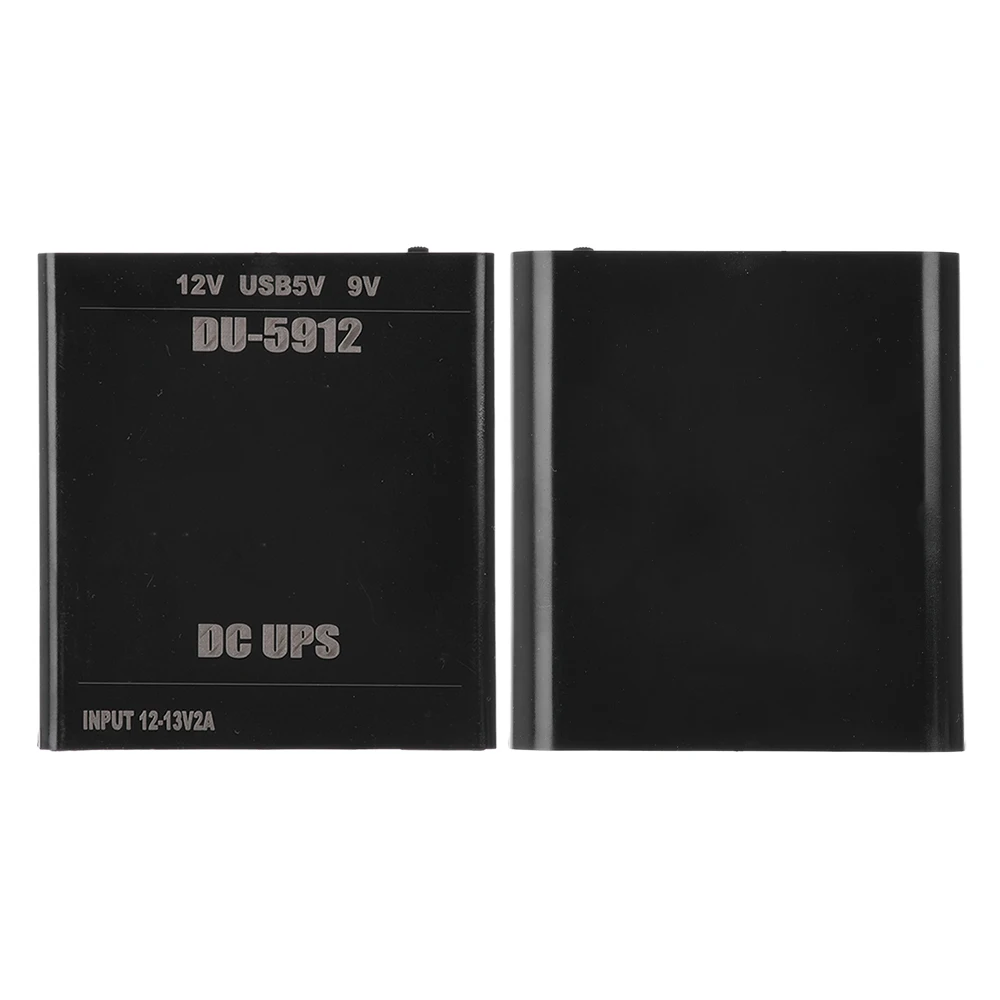

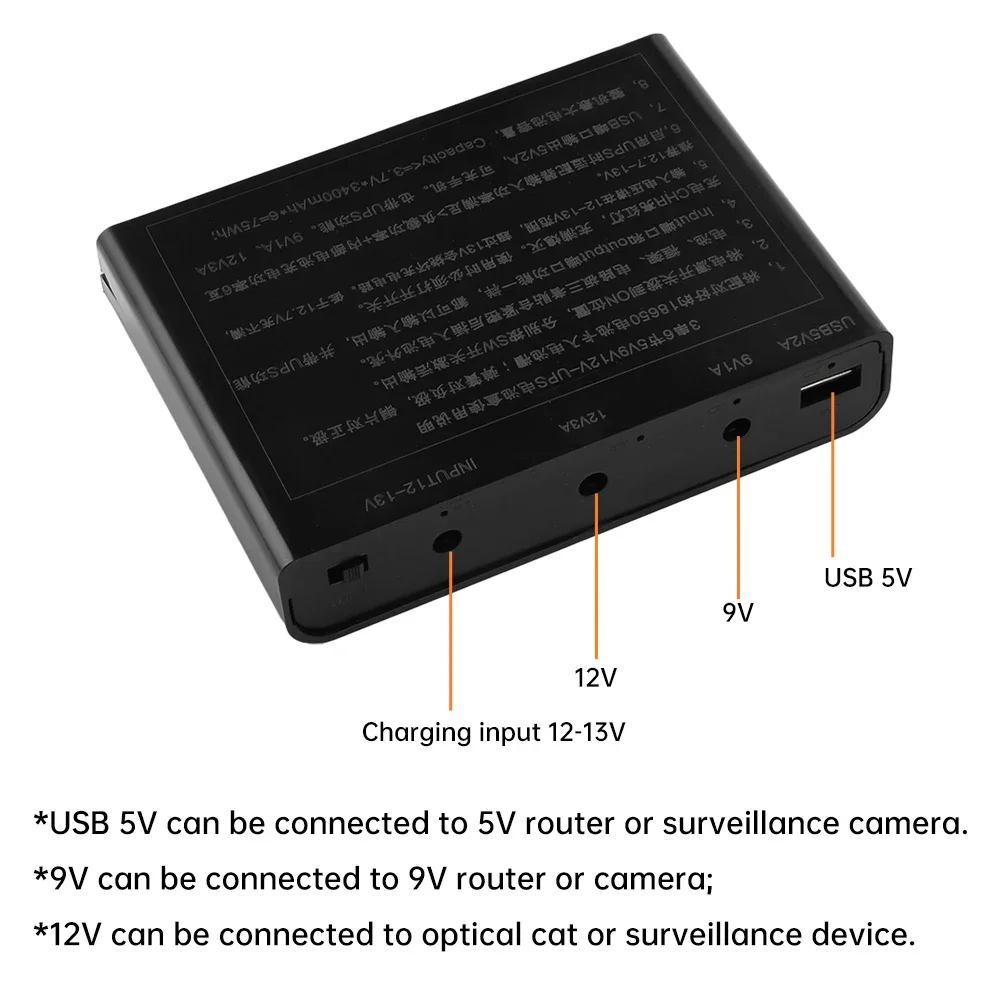

Output voltage: independent output 12V3-5A; 9V1A; USB5V2-3A; enable UPS function need to meet the input power conditions
The product is not voltage stabilized, the batteries are connected in series and output directly, the voltage increases or decreases with the amount of power.
Suitable for high-power appliances that do not require voltage regulation, electric motors, LED lights, stereos, solenoid valves, printers, etc.
Applicable batteries: 3.7V cylindrical flat 18650 batteries (recommended power battery)
Charger type: internal charging current limiting circuit, can be charged with 12-13V adapter, when the UPS is used, the greater the input power the more stable
Charging power: input adapter power to meet >= total load power + battery charging power 6W
Overcharge protection: 4.25V*3
Low voltage protection: 2.75V*3
Overcurrent detection voltage: 0.1V+-0.025V
Temperature range: -20~60°C

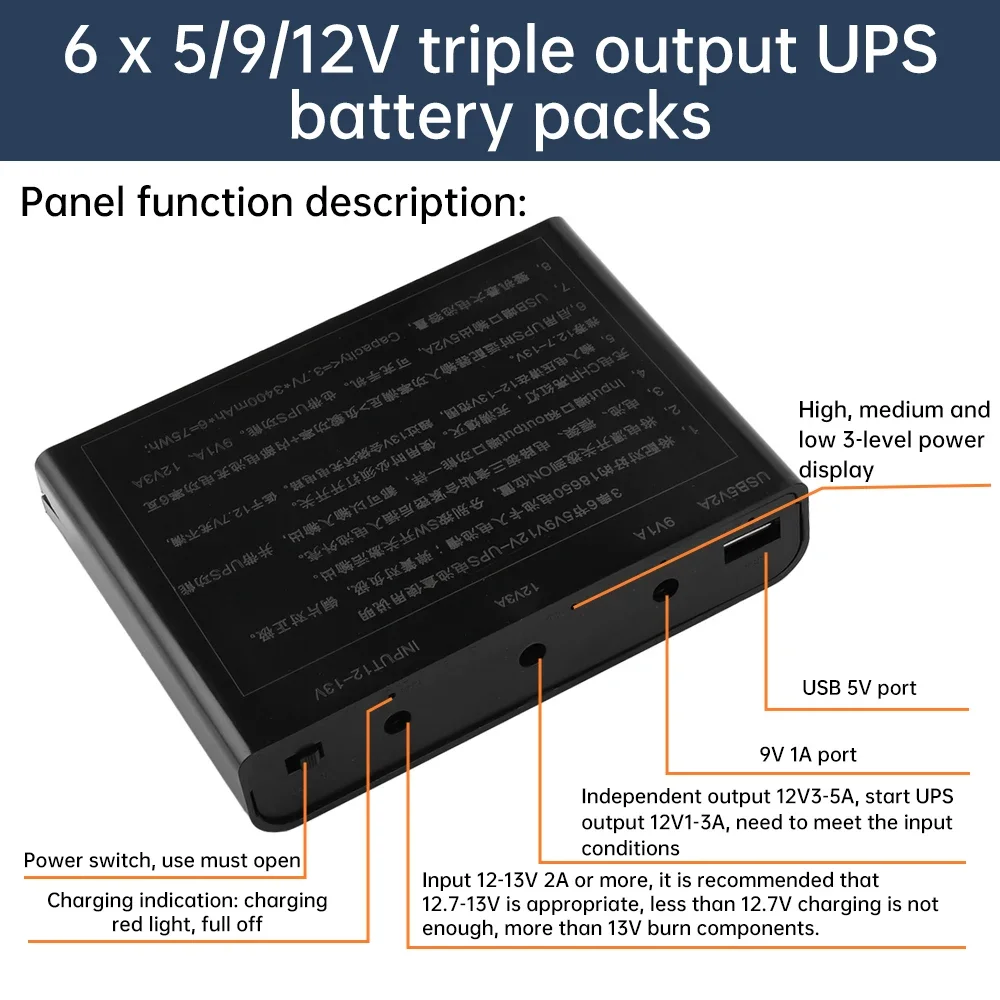

DC interface standard: DC5.5*2.1mm (inside positive and outside negative)

Precautions:

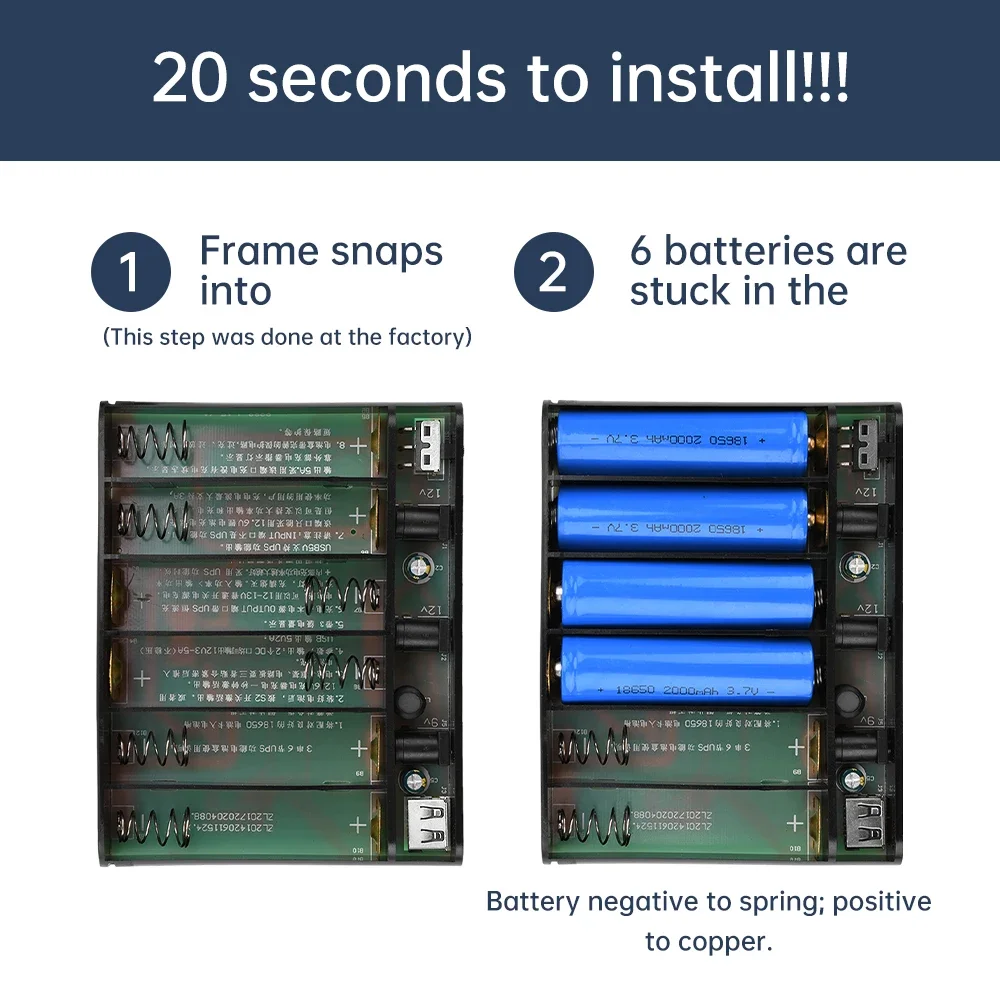

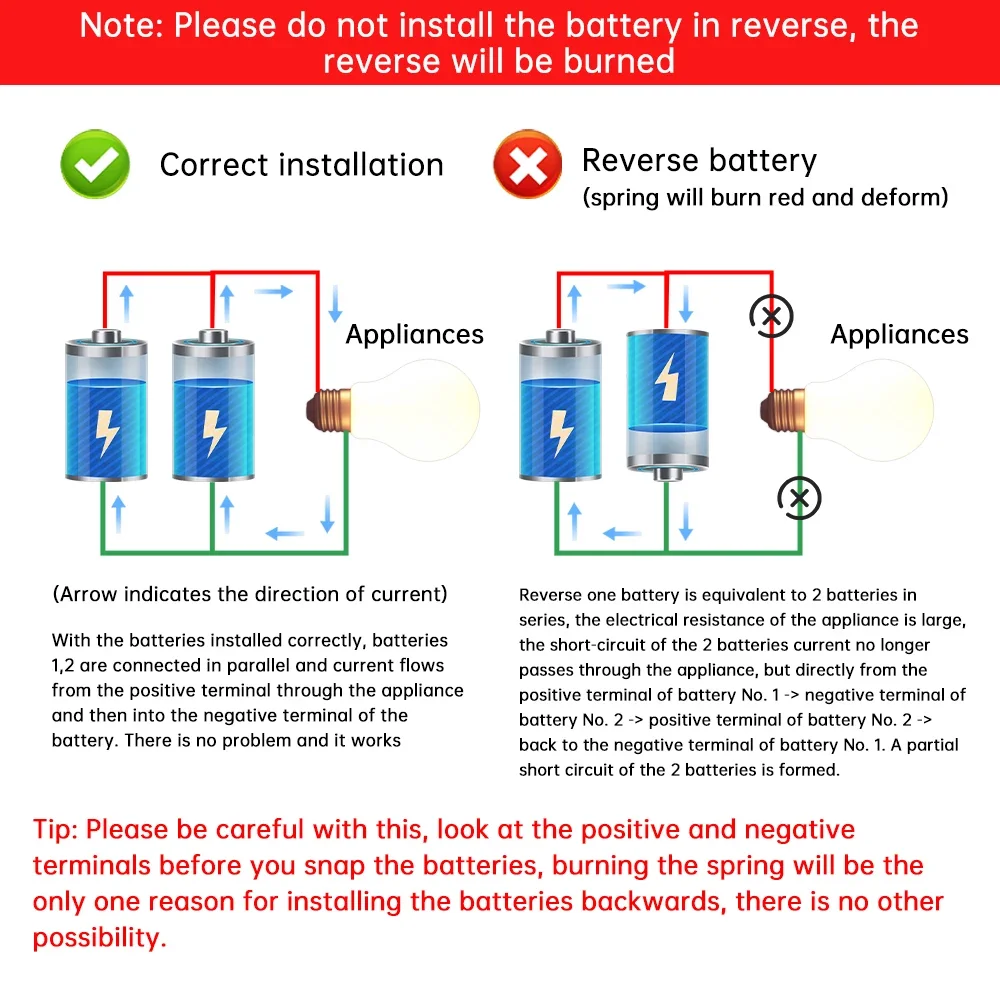

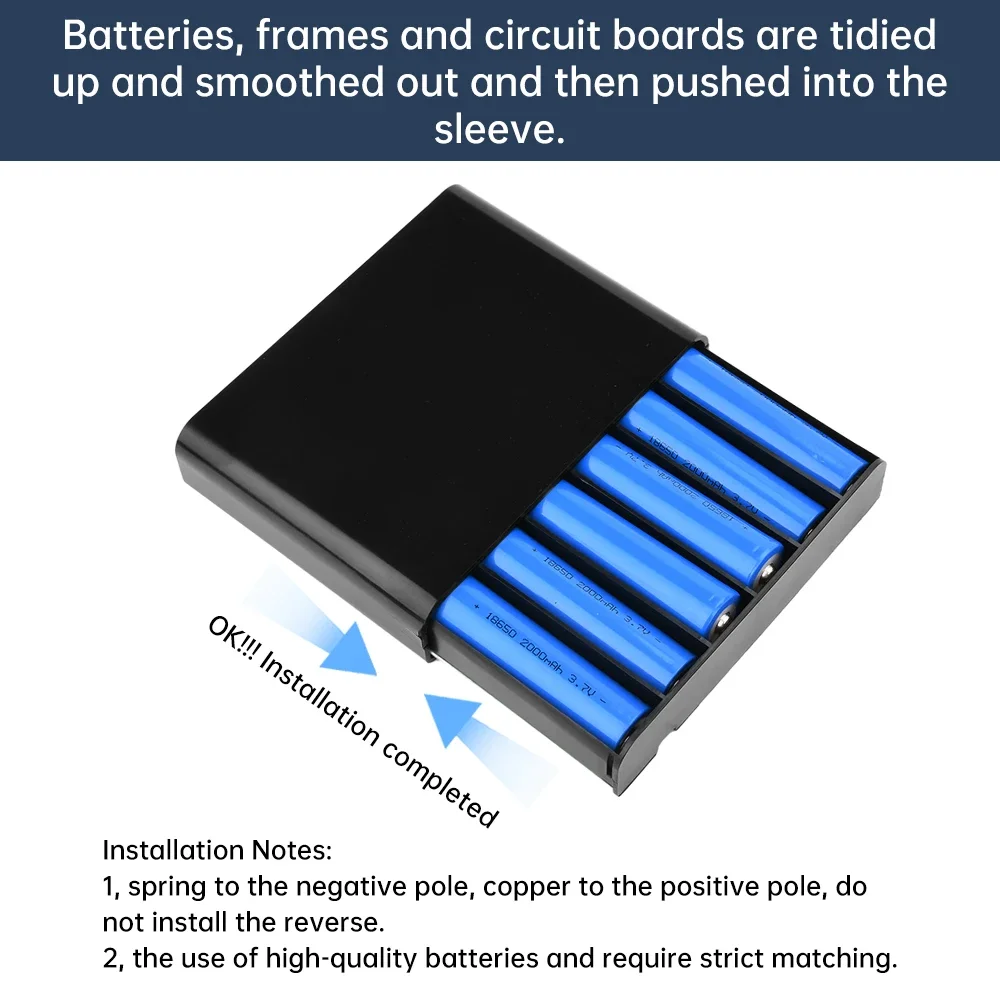

1. Spring to the negative pole, copper to the positive pole, do not install the reverse, install the reverse will burn!

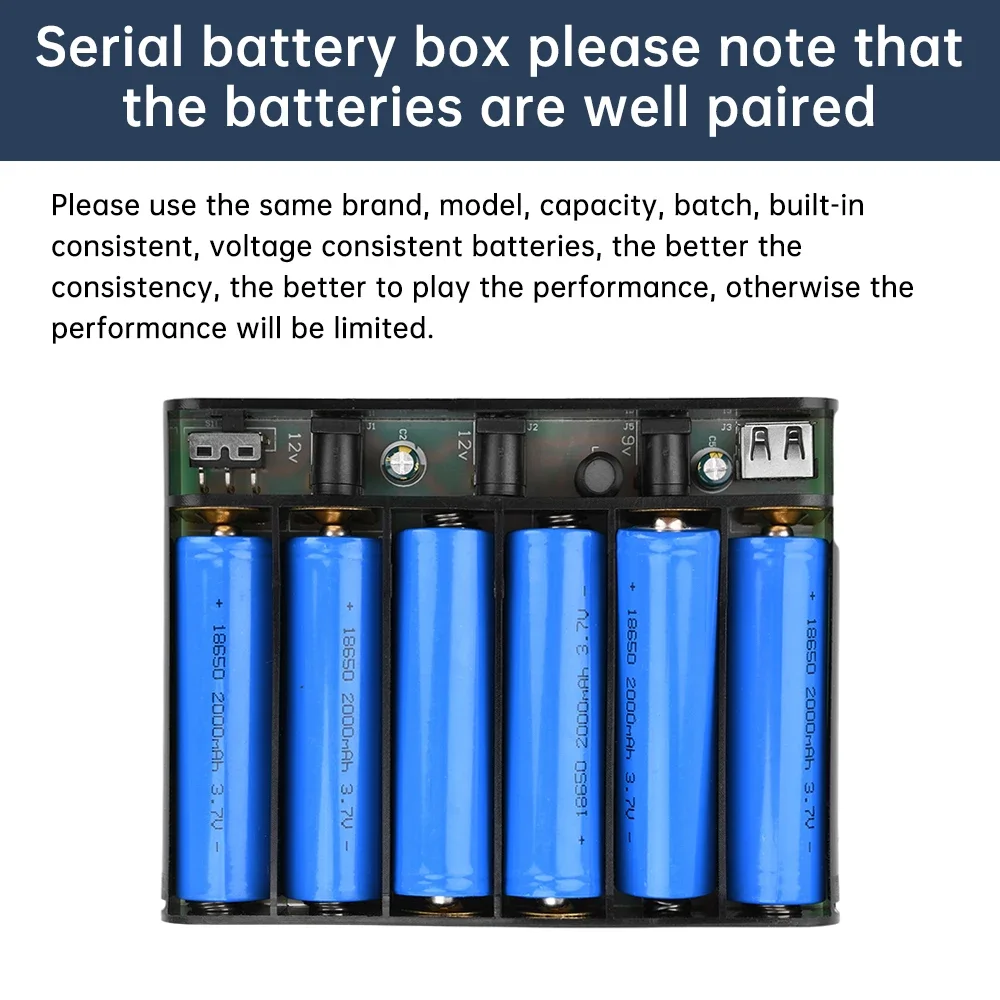

2. The use of high-quality batteries and require strict pairing, composed of battery packs of each individual battery should be the same parameters as far as possible!
3.This product can only use flat 18650 batteries, pointed batteries longer than 2MM, can not be used!

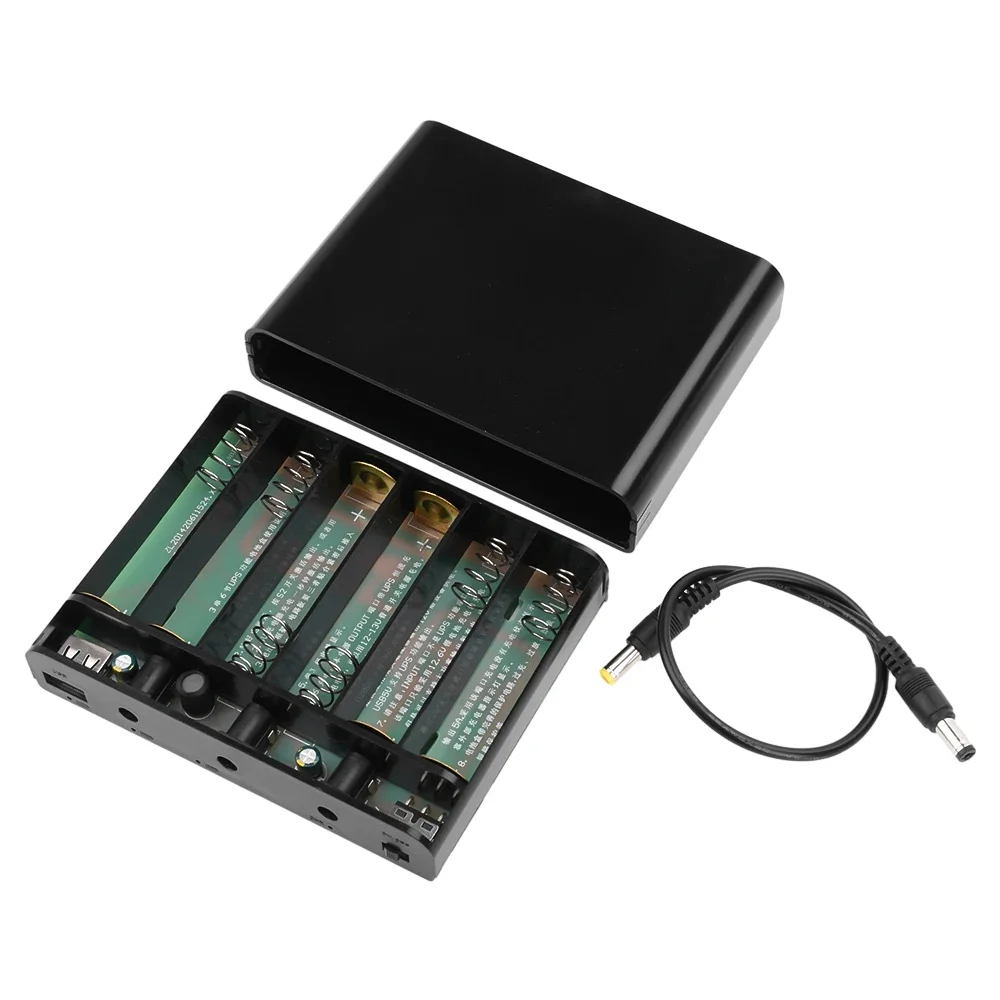

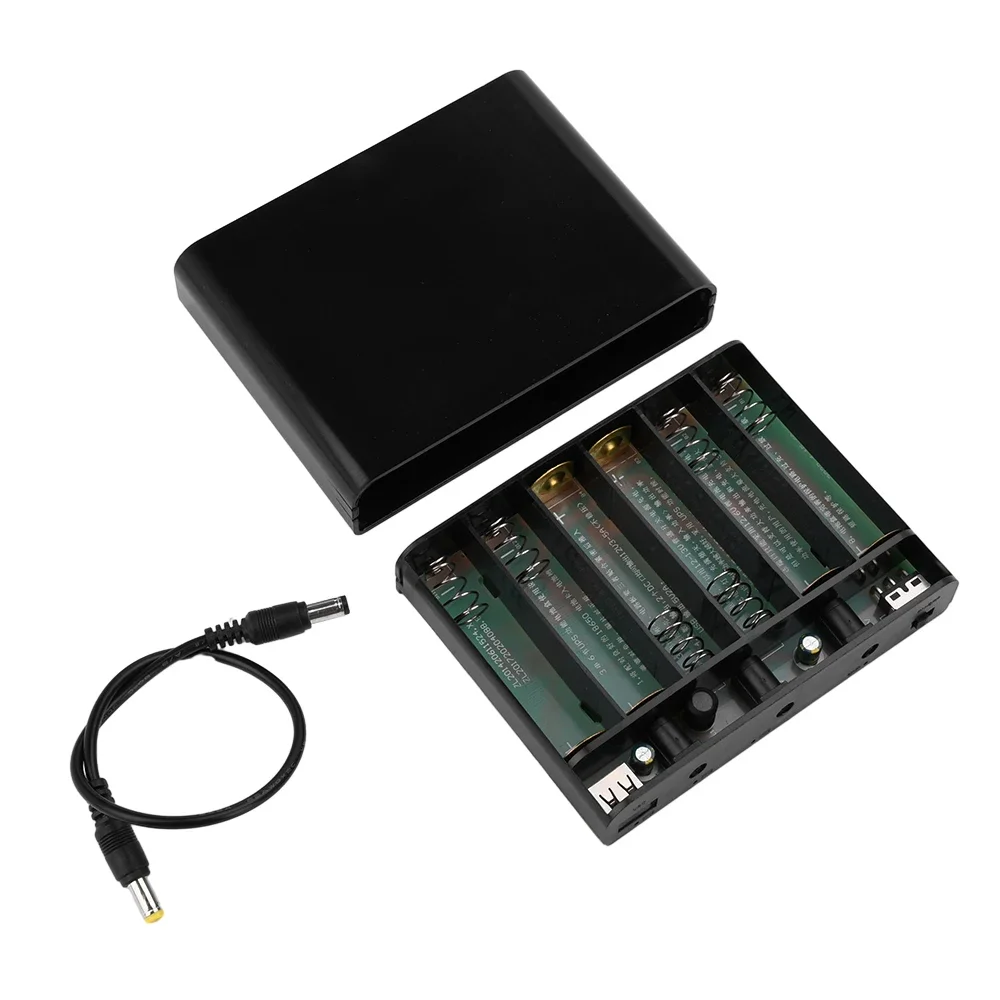

Package include:
Welding-free battery box * 1
0.3 meters line *1

Features:
1. Welding-free products, users can disassemble and replace the battery freely.
2.With DC isovoltage UPS function, automatic charge/discharge management without manual participation.
3. Covering optical cats, routers, surveillance cameras, etc. commonly used 5V, 9V, 12V three voltages
4. Strict quality control to ensure long-term stable operation and prolong service life.
5. Compact size, easy to carry, stable performance

Parameter:
Capacity: loadable battery capacity: 3 * 3.7V * 3400mah = 37 watt-hours; (batteries provided by the user)
Output power: Independent output 12V3A, 9V1A, USB5V2-3A without considering UPS input.
Whether voltage regulator: not regulated, 3 batteries in series direct output, full 12.6V, low voltage protection 8V, voltage increases or decreases with the amount of electricity Application Type: This product is designed for MODEM, router, surveillance camera equipment specially designed
Battery type: 3.7V cylindrical 18650 battery
UPS input voltage: 12-13V range charging, can not exceed 13V, below 12.6V can not be filled, recommended 12.7V
UPS input power: input adapter power must meet >= load power + internal battery charging power of 6 watts; the greater the stability of the larger power
Protection circuit parameters: overcharge protection: 4.25V * 3; low voltage protection: 2.75V * 3; overcurrent detection voltage: 0.1V +-0.025V
Temperature range：-20~60℃
DC interface standard: DC5.5*2.1mm (inside positive and outside negative)

Precautions:
1. Spring to the negative pole, copper to the positive pole, do not install the reverse, install the reverse will burn!
2. The use of high-quality batteries and require strict pairing, composed of battery packs of each individual battery should be the same parameters as far as possible!
3.This product can only use flat 18650 batteries, pointed batteries longer than 2MM, can not be used!

Package include:
Welding-free battery box * 1
